Heathkit 2000 Watt Antenna Tuner Model Sa-2060 This is a common problem due to the design of the SA Learn More heathkir opens in a new window or tab Any international shipping and import charges are paid in part to Pitney Bowes Inc. Heath kit SA-2060A Manual Refer to Detail C and mount the counter assembly and the window to the front of the chassis at W and Z. Refer to Detail C and remove the paper backing from the front panel label. Then carefully tighten the setscrew. Then tighten the heathkti screws on each in- ductor end plate. This is the manual page for Heathkit. Here you will find instruction manuals, service manuals, user guides schematic, brochures etc. SA-2060-A Schematic.zip: 66.
Free Heathkit Manual Downloads
Heathkit SAA Manual. Complete page assembly and instruction manual for the SA antenna tuner. Contains assembly notes, parts list, assembly. Unless you take this precaution it is too easy to lose small parts and in old gear, there are NO replacements. Heathkit Schematic and Manual Archive. Calibration Procedure for Heathkit Antenna Tuner SA-2060 & SA2060A By Derf Mockford G8ZGK, 17 Nov 2007: 207 KB: SA-5010.
Heathkit Sa 2040 Tuner Manual
| To remove the end of the inductor I tapped hard on the brass shaft with the handle of a screwdriver and managed to get the cap to move. Once it was loose it was a simple matter to it to gain access to the connection. |
| I removed the shaft from the cap and used a small butane torch to remove the old connection, clean it up and solder a new piece of braid from RG-58 to it. This would be impossible to do with a standard soldering iron. |
| The other end of the braid is slipped over the prepared end of the inductor and soldered into place. You must leave a bit of unsoldered braid so that the shaft can be located to the center to permit the inductor cap to be installed. Keep leads short. |
| Once the soldering it done, replace the end cap with a little glue to hold it in place. I used E6000 adhesive. |
Heathkit Sa 2060a

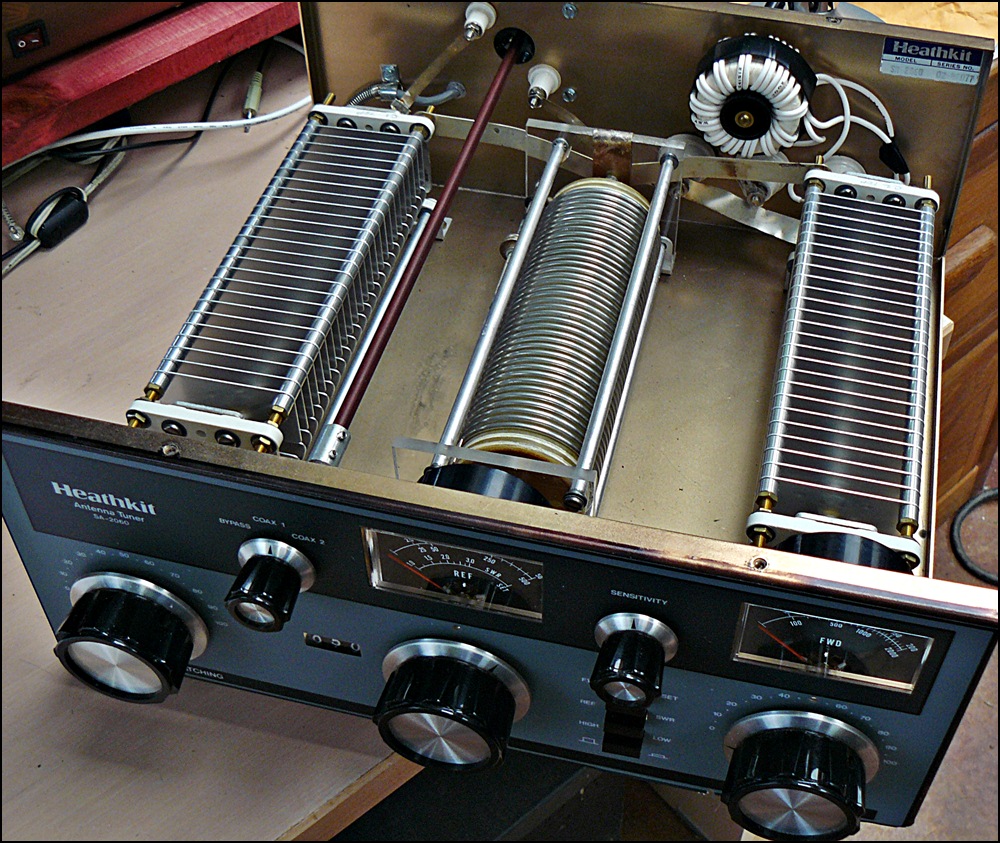

This is the original balun after I removed it. I have never used the balun, but this failure was caused by RF arcing from the strap which runs between L1 and C2 to ground through the windings of the balun, which is grounded. This is a common problem due to the design of the SA-2060. I didn't notice the damage until I was checking out the inductor problem. A view of the reworked balun. I protected the area of the balun near the strap to C2 by winding some additional glass-cloth tape over the windings. The dielectric strength of the Scotch (®) Glass-Cloth tape is around 3kv per layer. As additional dielectric strength, I used two wraps of 3mil thick Kapton tape over the offending strap as well. This adds an additional 9kv of protection to the balun from the strap. The Kapton is the golden stuff on the silver strap. Back together and ready for service! You can see W2AWA marked this SA-2060 so I assume he was the original builder Distance between the Balun and the C2 strap is only ~0.250' Heathkit Sa 2040 Manual Download
| After all this work to get the SA-2060 back in shape I opted to clean up the windings on the inductor which is showing its age. |
| Prior to cleaning. The inductor is in good shape for as old as it is. You can see the silver is worn and copper is showing through. |
| Above is my inductor after part of it was cleaned. I used a great product called Cool-Amp. Using a damp cloth, all you have to do is rub their silver plating poweder windings. The excess paste needs to be washed off. I used a brush to clean out the space between the windings and plenty of warm water. Excess water was removed with compressed air and then the windings were cleaned with alcohol and a lint free cloth. |
